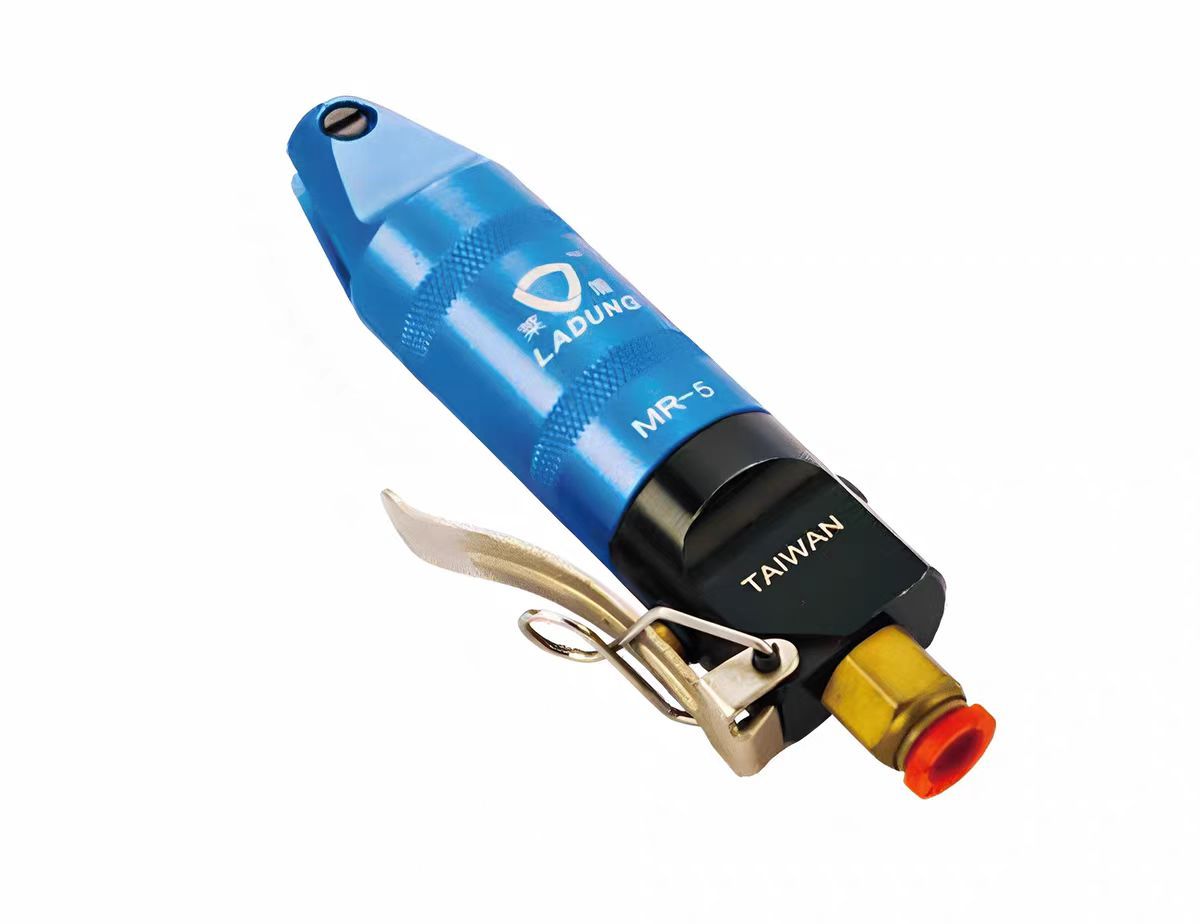

Hand Held Air Nippers
An air-cutting tool is a type of pneumatic cutting device specifically integrated onto the end of the robotic arm (EOAT, End Of Arm Tooling). It utilizes compressed air as its power source and is precisely controlled by the robot controller, being used to perform automated, high-precision, and high-efficiency cutting tasks.
Product Details

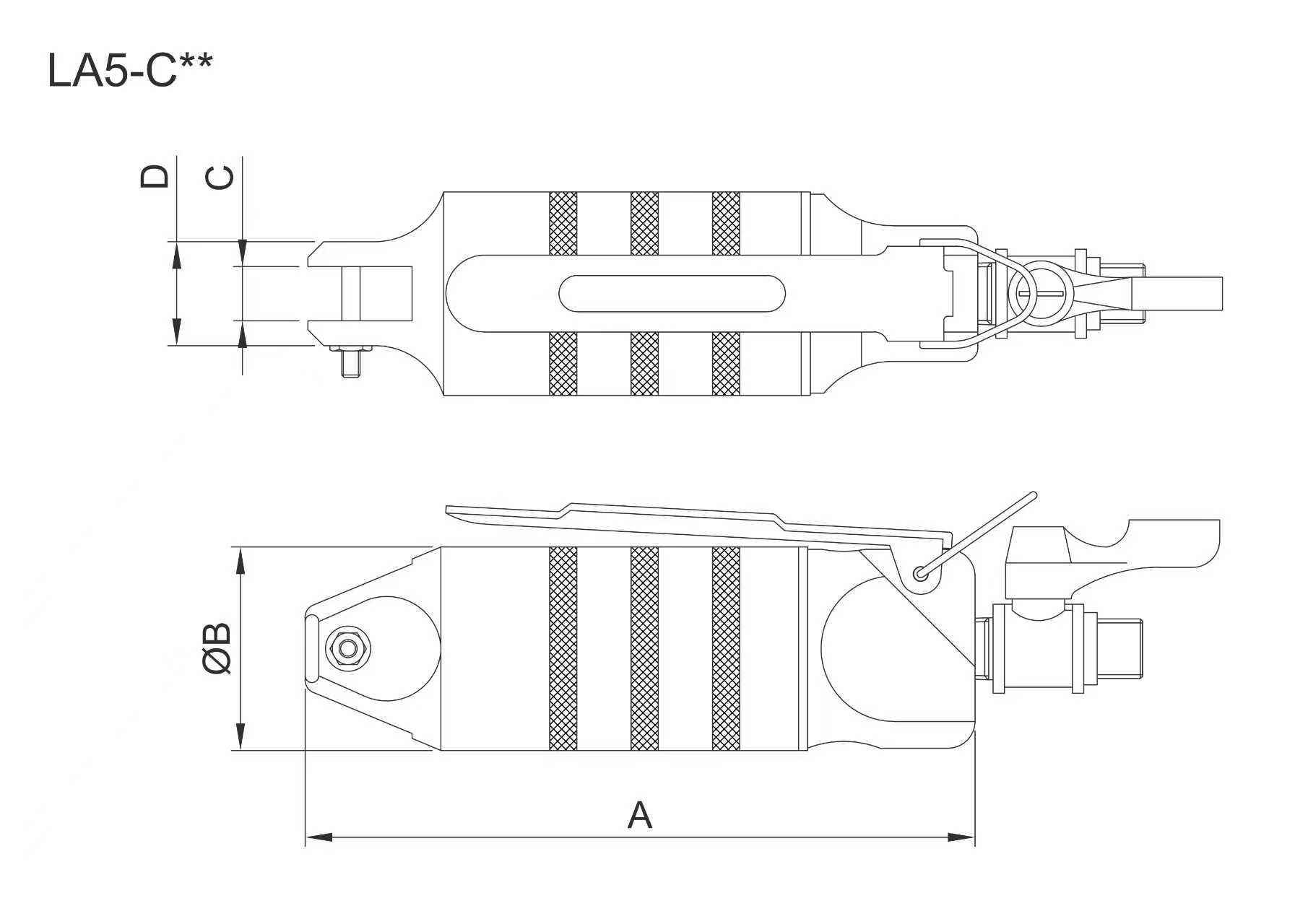

| Model NO. | Size(mm) | AIr Consumptlon (cm3/str.) | Air Pressure (MPa) | Weight(g) | Hose coupling | CapacityØ(mm) | ||||||
| A | B | C | D | Soft Plastic Hard Plastic | Hard Plastic | Copper | Steel | |||||
|
0
|
120 | 24 | 7 | 15.5 | 45 | 0.4-0.5 | 85 | 6 | 2 | － | 1 | 0.5 |
|
0
|
115 | 30 | 7 | 17 | 64 | 0.4-0.5 | 140 | 6 | 2 | － | 1 | 0.5 |
|
0
|
134 | 35 | 9 | 19 | 64 | 0.4-0.5 | 170 | 6 | 4 | 2.6 | 1.8 | 1.2 |
|
0
|
145 | 45 | 12 | 26 | 230 | 0.5-0.6 | 375 | 6 | 7 | 5 | 2.6 | 2 |
|
0
|
176 | 56 | 17 | 31 | 540 | 0.5-0.6 | 630 | 8 | 10 | 6.5 | 3.3 | 2.8 |
